OpenShift Practice

Kubernetes (commonly stylized as k8s, refer to Cybernetics) is an open-source container-orchestration system for automating application deployment, scaling, and management.

Node

The server hosting the pod and providing the Kubernetes runtime environment.

Pods

A pod is a higher level of abstraction grouping containerized components.

Replica Sets

A ReplicaSet’s purpose is to maintain a stable set of replica Pods running at any given time. As such, it is often used to guarantee the availability of a specified number of identical Pods.

Services

A Kubernetes service is a set of pods that work together, such as one tier of a multi-tier application. The set of pods that constitute a service are defined by a label selector. Kubernetes provides two modes of service discovery, using environmental variables or using Kubernetes DNS.

Resource

Resource is any kind of component definition managed by Kubernetes. The resource contains the configuration of the managed component (for example, the role assigned to the node) and the current state of the component (for example, whether the node is available).

Controller

Is a Kubernetes process that monitors resources and makes changes to try to move the current state to the desired state.

Label

A key-value pair that can be assigned to any Kubernetes resource. Selector uses the label to choose qualified resources for scheduling and other operations.

Namespaces

Kubernetes provides a partitioning of the resources it manages into non-overlapping sets called namespaces. They are intended for use in environments with many users spread across multiple teams, or projects, or even separating environments like development, test, and production.

Volumes

Filesystems in the Kubernetes container provide ephemeral storage, by default. A Kubernetes Volume provides persistent storage that exists for the lifetime of the pod itself (retain or recycle. This storage can also be used as shared disk space for containers within the pod.

OpenShift Container Platform is a Kubernetes cluster that is managed by the OpenShift tools (oc command or web console).

Master node

The OpenShift Container Platform master is a server that performs control functions for the whole cluster environment. It is responsible for the creation, scheduling, and management of all objects specific to OpenShift. It includes API, controller manager, and scheduler capabilities in one OpenShift binary. It is also a common practice to install an etcd key-value store on OpenShift masters to achieve a low-latency link between etcd and OpenShift masters.

Infrastructure node

The OpenShift infrastructure node runs infrastructure-specific services such as the Docker Registry and the HAProxy router. The Docker Registry stores application images in the form of containers. The HAProxy router provides routing functions for OpenShift applications.

Application node

The OpenShift application nodes run containerized applications created and deployed by developers. An OpenShift application node contains the OpenShift node components combined into a single binary, which can be used by OpenShift masters to schedule and control containers.

Console

Web UI provided by RHOCP cluster.

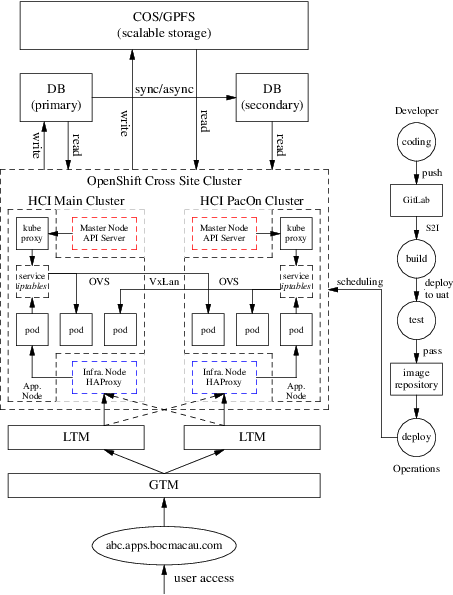

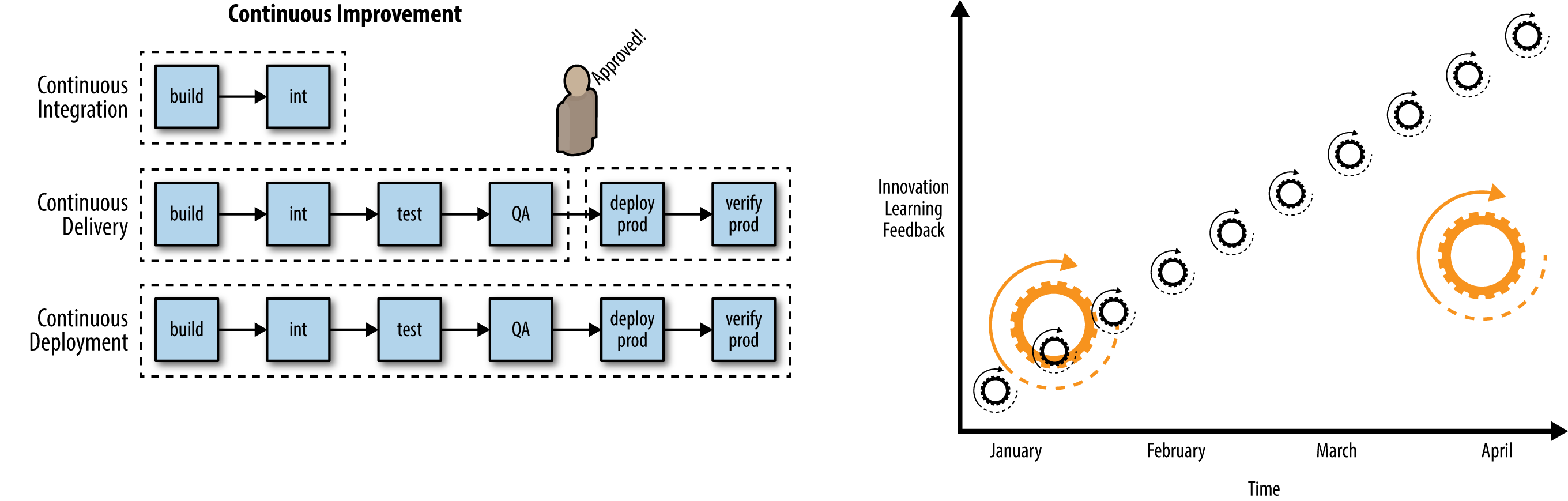

DevOps is concerned with aligning the constituents in the software delivery process to a common goal of value delivery—and it’s not just Developers and Operators, but InfoSec and Quality Assurance functions and more. Recognize that wealth is created when the work product is valued by actors external to the production system. Value delivery outcomes are measured by metrics tied to production delivery velocity, quality, and waste. DevOps emphasizes behavioral- or cultural-related changes such as those which encourage teaming, inclusion, feedback, and experimentation. Technological interventions such as automation are central as they can reinforce such target behaviors. DevOps does not necessarily imply functional roles in software delivery such as development, quality assurance, or operations are merged or seconded. More important is that a professional respect and shared sensibility is formed across the delivery team.

CI/CD generally refers to the combined practices of continuous integration and either continuous delivery.

\[ \boxed{ DevOps = CI/CD } \]

Cluster

The set of machines in the cluster. i.e. the Masters and the Nodes.

Master

A controller of the OpenShift Container Platform cluster. Note that the master may not be a node in the cluster, and thus, may not have IP connectivity to the pods.

Node

Group of containers running on a node, managed by OpenShift Container Platform.

Service

Abstraction that presents a unified network interface that is backed by one or more pods.

Router

A web proxy that can map various URLs and paths into OpenShift Container Platform services to allow external traffic to travel into the cluster.

Node Address

The IP address of a node. This is assigned and managed by the owner of the network to which the node is attached. Must be reachable from any node in the cluster (master and client).

Pod Address

The IP address of a pod. These are assigned and managed by OpenShift Container Platform. By default they are assigned out of the 10.128.0.0/14 network. Only reachable from the client nodes.

Service Address

An IP address that represents the service, and is mapped to a pod address internally. These are assigned and managed by OpenShift Container Platform. By default they are assigned out of the 172.30.0.0/16 network. Only reachable from the client nodes.

The following diagram shows all of the pieces involved with external access:

OpenShift SDN creates and configures three network devices:

br0

the OVS bridge device that pod containers will be attached to. OpenShift SDN also configures a set of non-subnet-specific flow rules on this bridge.

tun0

an OVS internal port (port 2 on br0). This gets assigned the cluster subnet gateway address, and is used for external network access. OpenShift SDN configures netfilter and routing rules to enable access from the cluster subnet to the external network via NAT.

vxlan_sys_4789

The OVS VXLAN device (port 1 on br0), which provides access to containers on remote nodes. Referred to as vxlan0 in the OVS rules.

For each Pod in the Node, the local OpenShift creates a vethXX interface and assign it to the OVS br0. The vxlan_sys_4789 of br0 is the interface that defines the VXLAN tunnels, or the overlay network, that enables the communication between local Pods with Pods in remote Nodes. This interface is known as vxlan0 interface inside the OVS and that is the name used in the OpenFlow entries. The tun0 interface gets the local cluster network subnet gateway address. This is the interface that provide NAT access from the cluster network subnet to the external network. In additional to the local cluster network subnet gateway address, on each Node the Kubernetes Service objects network is also pointed to the tun0 interface.

The default OpenShift Router is one or more Router Pods running on Infrastructure Nodes (infra.myopenshift.com) and is deployed as a Deployment Config (deploymentconfig.apps.openshift.io/router). Sharing the Network Namespace enables these Router Pods to receive traffic over the host-network. By default, the OpenShift Router listens on TCP ports 80 (HTTP), 443 (HTTPS), and 1936 (HAProxy Stats). Once the traffic arrives to the Pod, it will match the corresponding Route object.

• Pod to pod in the same node

  eth0 (pod) \(\rightarrow\) vethA \(\rightarrow\) br0 \(\rightarrow\) vethB \(\rightarrow\) eth0 (pod)

• Pod to pod in the different nodes

  eth0 (pod) \(\rightarrow\) vethA \(\rightarrow\) br0 \(\rightarrow\) vxlan0 \(\rightarrow\) network \(\rightarrow\) vxlan0 \(\rightarrow\) br0 \(\rightarrow\) vethB \(\rightarrow\) eth0 (pod)

• Pod to external host

  eth0 (pod) \(\rightarrow\) vethA \(\rightarrow\) br0 \(\rightarrow\) tun0 \(\rightarrow\) \(\texttt{SNAT} \atop \texttt{(MASQUERADE)}\) \(\rightarrow\) eth0 (phy.) \(\rightarrow\) Host

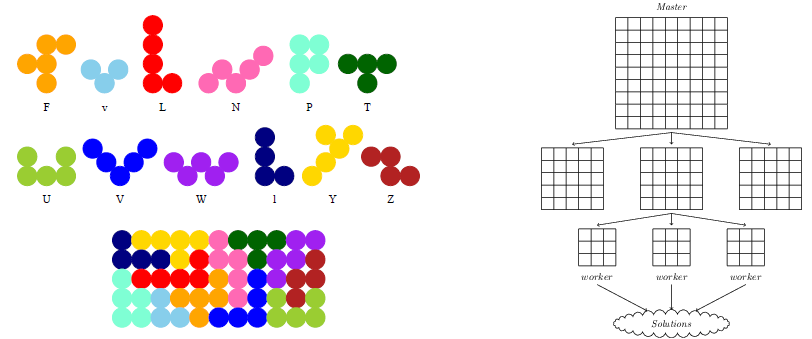

PuzzleBrain is a distributed system based on DLX algorithm and MapReduce architecture. More detail can see here.

Build the PuzzleBrain program puzzler

git clone https://github.com/GongCun/Pentomino.git
cd Pentomino
git branch -a
git checkout openshift
make

Test the puzzler

mkdir -p ./test
sed -i 's/^M//g' ./run.sh
sed -i 's/^M//g' ./root/*.sh

# Server
(cd ./test; ncat -4kl 3001 -c ../run.sh)
# Client
(cd ./test; ../puzzler -m -b8 -s 127.0.0.1 -p 3001)

As an S2I builder is a container image, you can create your own custom builder images. This is done by building an image from a Dockerfile. The Dockerfile for this builder would contain:

FROM docker.io/httpd
LABEL io.k8s.description="Simple HTTP Webserver" \
      io.k8s.display-name="Simple HTTP Webserver" \
      io.openshift.expose-services="8080:http" \
      io.openshift.tags="builder,http" \
      io.openshift.s2i.scripts-url="image:///usr/libexec/s2i"

COPY assemble /usr/libexec/s2i/
COPY run /usr/libexec/s2i/
COPY usage /usr/libexec/s2i/

RUN chmod -R 777 /usr/local/apache2/htdocs/ && \
    chmod -R 777 /usr/local/apache2/logs/ && \
    sed -i 's/Listen 80/Listen 8080/g' /usr/local/apache2/conf/httpd.conf

USER 1001

EXPOSE 8080

CMD ["/usr/libexec/s2i/usage"]

s2i looks for you to supply the following scripts to use with an image:

• assemble - The assemble script should take any source files placed in the /tmp/src directory by the s2i build process and copy them into the required location, or compile them into an executable application.
• run - The run script is executed when the application image produced by the S2I build process is run.
• usage - The usage script included in the image is configured as the default command executed when the image is run.
• save-artifacts (optional) - Captures the artifacts from a previous build into the next incremental build.

Building the Image from the Dockerfile

docker build -t simple-http-server .

Push the source code to GitHub

git add ./index.html
git commit -m"init"
git remote add origin <github-url>
git push -u origin master

To using the Builder Image with OpenShift, upload the image to an external image registry such as quay.io:

docker tag simple-http-server quay.io/gongcun/simple-http-server
docker login -u gongcun quay.io
docker push quay.io/gongcun/simple-http-server

Then import it into OpenShift using:

oc import-image quay.io/gongcun/simple-http-server --confirm

This will create an images stream called simple-http-server, and you can use it by running:

oc new-app simple-http-server~https://github.com/GongCun/openshifts2i --name=s2i-test

The expose the service:

oc expose svc/s2i-test --hostname=s2i.apps.myopenshift.com --port=8080

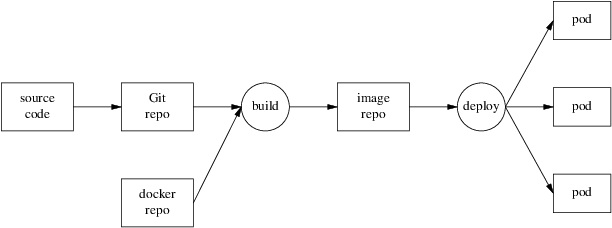

CI/CD: git commit \(\rightarrow\) git push \(\rightarrow\) oc start-build

Edit the index.html file

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Haruhi</title>
</head>
<body>
    <img src="Haruhi.jpg" alt="Haruhi.jpg">
</body>
</html>

Commit the changes and push the code to remote Git repository

$ git add ./index.html ./Haruhi.jpg
$ git commit -m"add .jpg"
$ git push -u origin master

Start a new Source-to-Image build process and wait for it to build and deploy

$ oc start-build s2i-test
$ oc logs -f bc/s2i-test

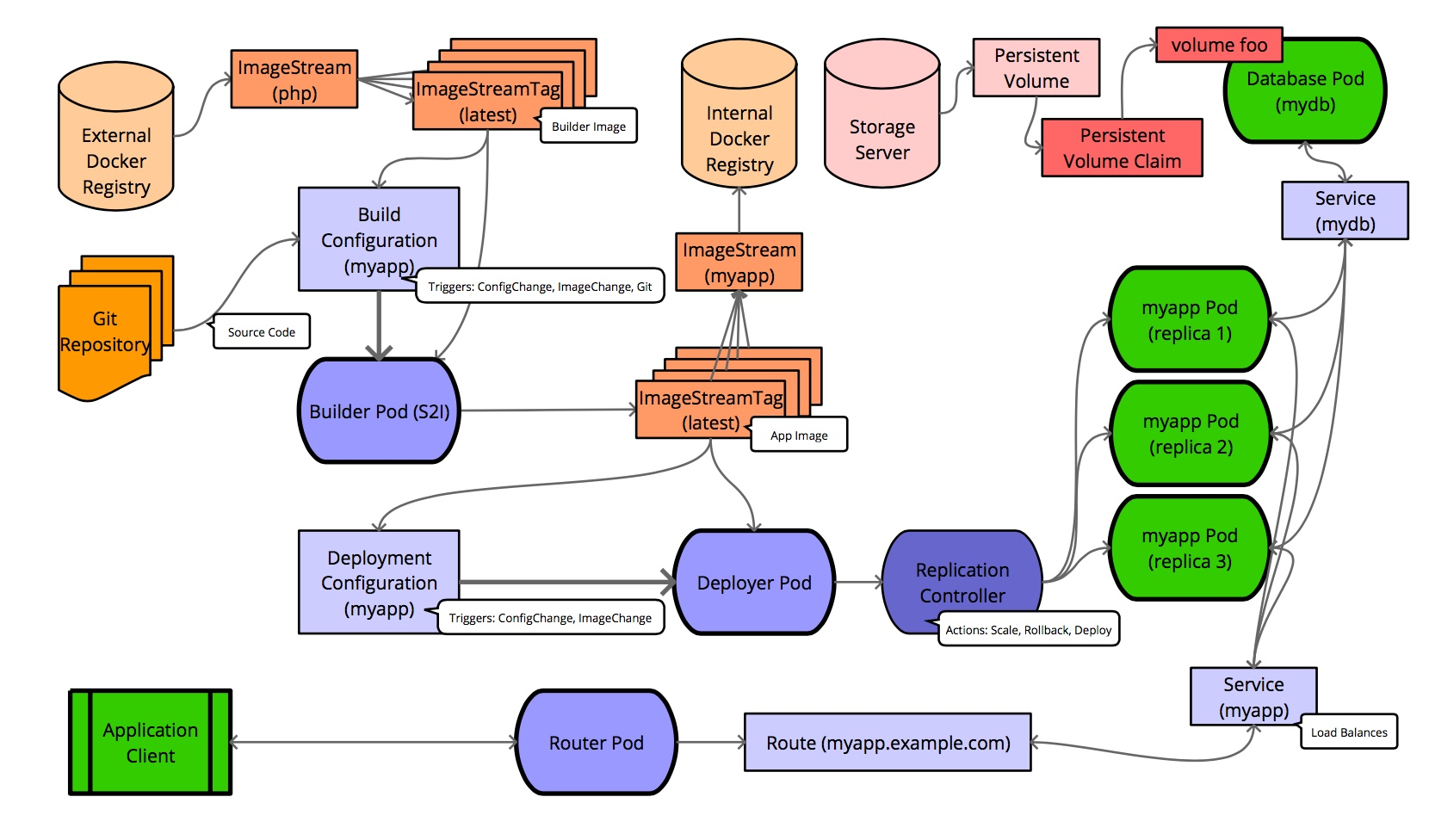

OpenShift deploys new versions of user applications into pods quickly. To create a new application, in addition to the application source code, a base image (the S2I builder image) is required. If either of these two components gets updated, OpenShift creates a new container image. Pods created using the older container image are replaced by pods using the new image.

The image stream resource is a configuration that names specific container images associated with image stream tags, an alias for these container images. OpenShift builds applications against an image stream. The OpenShift installer populates several image streams by default during installation. To determine available image streams, use the oc get command, as follows:

$ oc get is -n openshift

Building applications with image stream template

$ oc new-app --name=php-helloworld \
  openshift/php~https://github.com/GongCun/DO180-apps#demo \
  --context-dir php-helloworld

$ oc logs -f bc/php-helloworld
$ oc expose --name php-helloworld svc/php-helloworld

A template describes a set of objects that can be parameterized and processed to produce a list of objects for creation by OpenShift. The objects to create can include anything that users have permission to create within a project, for example services, build configurations, and deployment configurations. A template may also define a set of labels to apply to every object defined in the template.

This means that typically a template will include:

• A set of resources that is created as part of “creating/deploying” the template.
• A set of values for the parameters defined in the template.
• A matching label attached to each of the generated resources that provides a convenient way to indicate the resources are connected.

A template will be defined in JSON or YAML format, and will be loaded into OpenShift for user instantiation, also known as application creation.

A template provides developers with an easy way to create all the necessary OpenShift resources for their application to work with minimal effort. This allows you to quickly deploy an application without having to understand all the underlying technology of the OpenShift platform.

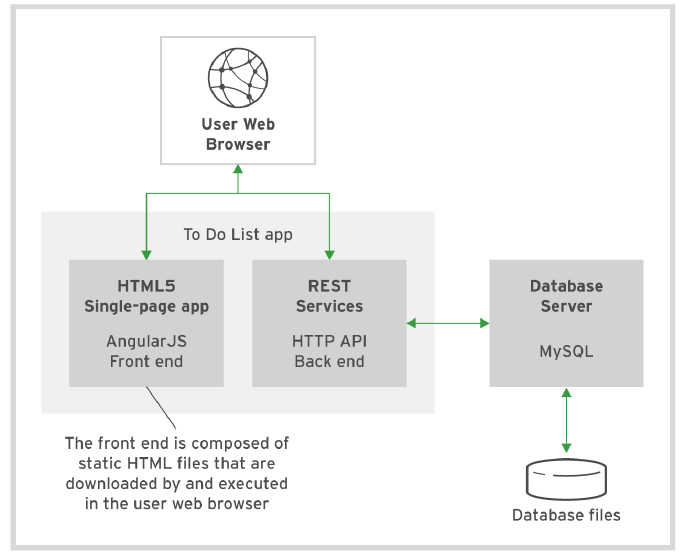

The components of To-Do-List

• The presentation layer is built using AngularJS's single-page HTML5 front end
• The business layer is made up of the HTTP API backend using node.js
• The persistence layer is based on MySQL database services

Templates define a set of parameters, which are assigned values. OpenShift resources defined in the template can get their configuration values by referencing named parameters. Parameters in a template can have default values, but they are optional. Any default value can be replaced when processing the template.

$ cd ./Template
$ oc process --parameters -f ./todo-template.yaml
NAME                DESCRIPTION                               GENERATOR           VALUE
QUAY_USER           Quay namespace the images are stored in

# Login quay.io
$ docker login -u gongcun quay.io
Password:
Login Succeeded

# Creating application
$ oc process -f ./todo-template.yaml \
     -p QUAY_USER=gongcun | oc create -f -
pod/mysql created
pod/todoapi created
service/todoapi created

# Check the status
$ watch oc get pods
$ oc logs -f <pod>

# Create route
$ oc expose svc/todoapi

Use browser to open http://todoapi-demo.apps.myopenshift.com/todo/.

$ docker search --limit=3 gitlab-ce
INDEX       NAME                               DESCRIPTION                                     STARS
docker.io   docker.io/gitlab/gitlab-ce         GitLab Community Edition docker image base...   2814

$ docker pull docker.io/gitlab/gitlab-ce # not necessary
$ oc new-app --name gitlab gitlab/gitlab-ce
$ oc logs -f dc/gitlab

Review the application logs to confirm that the failure is caused by insufficient privileges.

$ oc get pods -l app=gitlab
NAME             READY     STATUS             RESTARTS   AGE
gitlab-1-fj8z2   0/1       CrashLoopBackOff   5          10m

$ oc logs -f po/gitlab-1-fj8z2
...
Cleaning stale PIDs & sockets
find: ‘/run/secrets/etc-pki-entitlement’: Permission denied
find: ‘/run/secrets/rhsm’: Permission denied
Generating ssh_host_rsa_key...
No user exists for uid 1000430000

Create a new service account and add the anyuid security context constraints (SCC) to it.

$ oc get dc gitlab -o go-template='{{.spec.template.spec.serviceAccount}}{{"\n"}}'
<no value>

$ oc create sa gitlab-sa
$ oc adm policy add-scc-to-user anyuid -z gitlab-sa
$ oc describe scc anyuid | grep Users:
...,system:serviceaccount:demo:gitlab-sa

Modify the gitlab application so that it uses the newly created service account. Verify that the new deployment is successful.

$ oc get --export dc/gitlab -o yaml >./gitlab.yaml

$ vim ./gitlab.yaml
  ...
  spec:
    serviceAccount: gitlab-sa
    serviceAccountName: gitlab-sa
    containers:
    ...

$ oc replace -f ./gitlab.yaml
$ watch oc get pods

Expose the gitlab application (HTTP)

$ oc expose svc/gitlab --port 80

Expose the securing application with Edge Routes. Prepare the gitlab-route.yaml file

apiVersion: route.openshift.io/v1
kind: Route
metadata:
  annotations:
    description: Route for application's http service.
  labels:
    app: gitlab
  name: gitlab
  namespace: openshiftdemos
spec:
  host: gitlab.openshiftdemos.apps.myopenshift.com
  port:
    targetPort: 80
  to:
    kind: Service
    name: gitlab
    weight: 100
  wildcardPolicy: None
  tls:
    termination: edge
    insecureEdgeTerminationPolicy: Redirect

The termination field is edge for edge termination. The insecure policy to redirect requests sent on an insecure scheme HTTP to a secure scheme HTTPS. Run the following command to take effect:

oc replace -f ./gitlab-route.yaml

Fix the pod hostname problem:

$ oc get po/gitlab-2-hcbhw -o yaml >./gitlab-pod.yaml

$ vim ./gitlab-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    openshift.io/scc: anyuid
  labels:
    app: gitlab
    deployment: gitlab
    deploymentconfig: gitlab
  name: gitlab.openshiftdemos.apps.myopenshift.com
  namespace: openshiftdemos
...

# Delete the old pod
$ oc scale --replicas=0 dc/gitlab

# Re-create the new pod
$ oc create -f ./gitlab-pod.yaml

# Watch the pod status
$ watch oc get pod -l app=gitlab
NAME                                         READY     STATUS    RESTARTS   AGE
gitlab.openshiftdemos.apps.myopenshift.com   1/1       Running   0          6m

Create an application with gitlab:

$ mkdir -p ./demo
$ cd ./demo
$ cat >./README.md
# OpenShift is fun
$ git init && git add ./README.md
$ git commit -m"init"
$ git remote add origin \
  http://gitlab.openshiftdemos.apps.myopenshift.com/GongCun/demo.git

$ git config http.sslVerify false
$ git config --add remote.origin.proxy ""
$ git remote show origin
$ git push -u origin master
Username:
Password:
